Ridgid 73678 Description
The RP 241 is the latest tool in the RIDGID Compact Press Tool family. This lightweight, low profile tool is ergonomically designed to help you easily work overhead and in tight spaces.

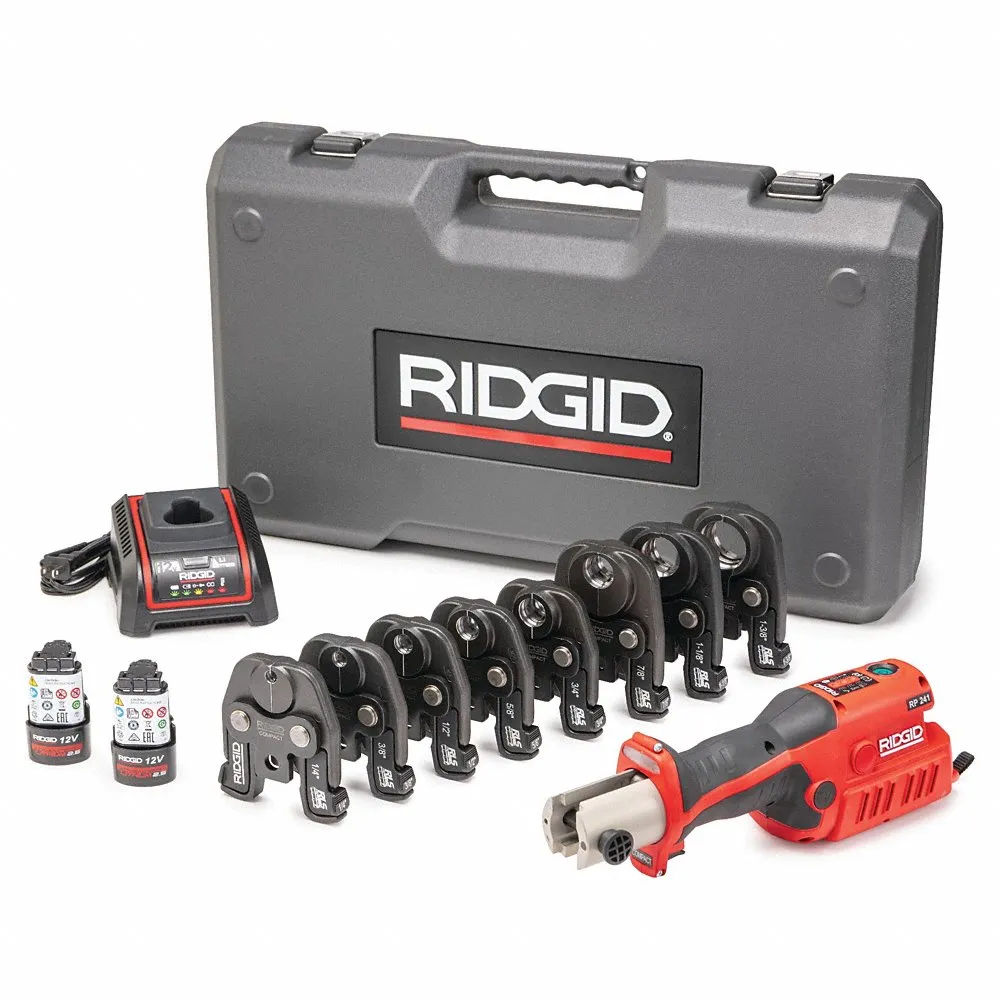

Ridgid 73678 Includes
- (1) RP 241 Press Tool
- (1) RLS Compact Jaw 1-3/8"
- (1) RLS Compact Jaw 1-1/8"
- (1) RLS Compact Jaw 7/8"
- (1) RLS Compact Jaw 3/4"
- (1) RLS Compact Jaw 5/8"
- (1) RLS Compact Jaw 1/2"
- (1) RLS Compact Jaw 3/8"
- (1) RLS Compact Jaw 1/4"
- (1) 12V Advanced Lithium Battery Charger
- (2) 12V Advanced Lithium 2.5Ah Battery
- (1) Case
Ridgid 73678 Features
- Compact - Lightweight and balanced for control and comfort
- User-friendly - One-handed operation for ease of use
- Smart - Bluetooth connectivity and advanced color-coded light indicators for simple operation
- Agile - 180° head swivel for reaching tight spaces
- Persistent - Completes up to 140 presses per charge
- Designed in conjunction with the RLS system fittings, ensuring total system compatibility.
- Jaws are compatible only with RIDGID Compact Series pressing tools (100-B, RP 200-B, RP 210-B, RP 240, RP 241).
- The RP 241 is compatible with all RIDGID Compact Series jaws, rings, and actuators and can press up to 1 1/4" (32 mm) on Copper & Stainless Steel; up to 1 1/2" (40 mm) on PEX tubing; and up to 1" (25 mm) Carbon Steel.
- For high pressure HVAC/R applications.
Ridgid 73678 Specifications
| Copper and Stainless Steel Capacity | 1/2" - 1-1/4" (12-35 mm) |
| Pex / Multilayer Capacity | 1/2" - 1-1/2" (14-32 mm) |
| Steel Capacity (North America) | 1/2" - 3/4" |
| Power | 12V Advanced Lithium 2.5 Battery |
| Head Rotation | 180? Barrel/Jaw Swivel |
| Crimp Cycle Time | ~5 seconds |
| Lighting | Large LED-Light for No or Low-Light Environments |
| Charge | 140 Crimps per Charge |
| Service Cycle Interval | 32000 |
| Model Design | Inline Design to Help Access Tight Spaces |
| Motor Type | DC Brushless |
| Voltage | 10.8V |
| Wattage | 260 |
| Amperage | 24.1 |
| Length | 15.8" |
| Width | 3.4" |
| Height | 4.3" |
| Weight | Tool Only |
